Price:
6271,55 ৳

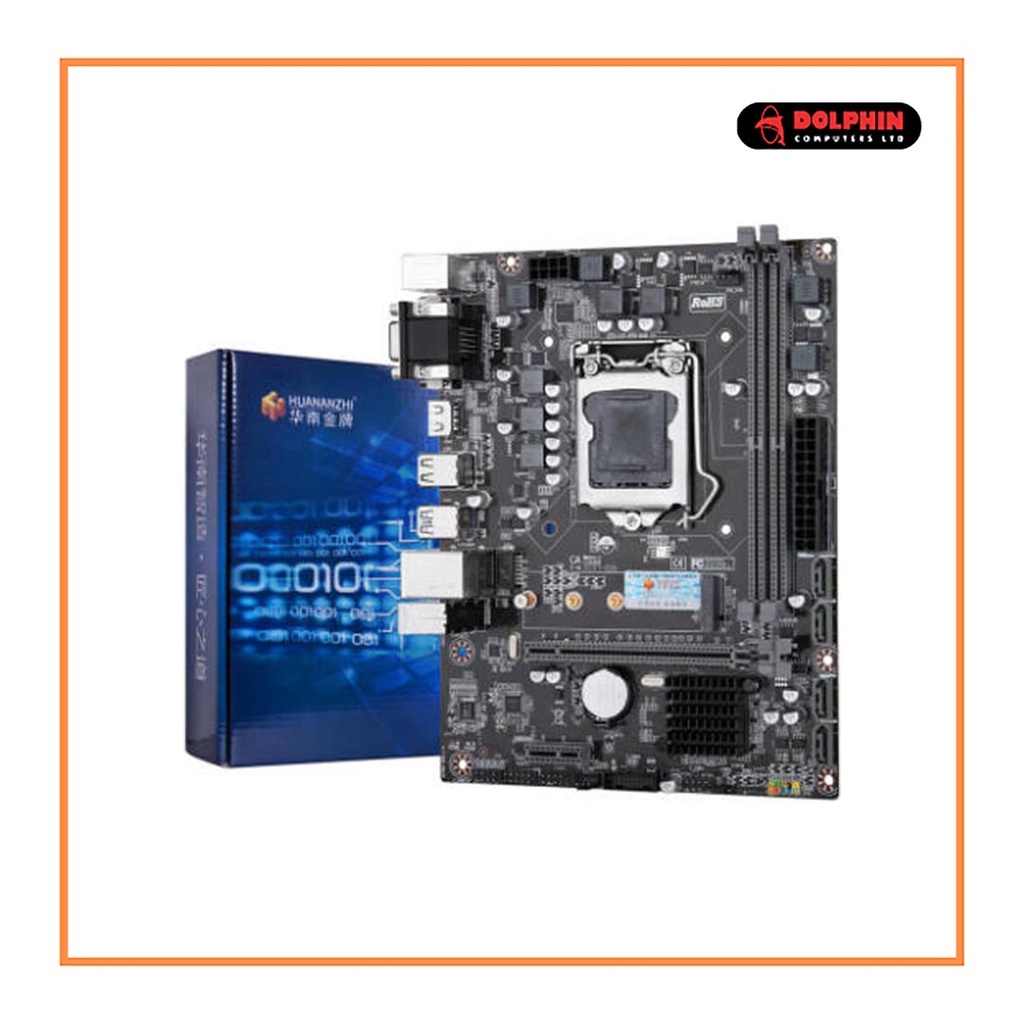

MOTHERBOARD HUANANZHI B250
It supports NVIDIA and AMD series graphics cards
The CPU features Integrated Graphics output VGA / DVI-I / HDMI
Support non-ECC PC memory
Ultra-fast PCIe M.2 NVMe slot design
24pin+8pin power interface
ALC662 5.1-channel onboard sound-card
PCB
Full Specification
| Item | Motherboard |
|---|---|
| Motherboard Type | Standard |
| Chipset | Intel B250 |
| Supported Processors | Intel LGA 1151 family processors with 6 / 7 / 8 / 9 generation processors |
| Max Memory | 2 x DIMM, Max 32GB, DDR4 2666 / 2400 / 2133 MHz, Supports non-ECC Memory, Dual Channel Memory Architecture |
| Onboard Audio | Realtek ALC662 5.1-Channel, High Definition Audio CODEC, 3 3.5mm Audio Input / 1 x Front Audio Output Pin interfaces |
| Onboard LAN | 1 x 10 / 100 LAN Controller |
| Connectors | 1 x USB 2.0 connector support additional 2 x USB 2.0 port, 1 x USB 3.0 connector support additional 2 x USB 3.0 port, 1 x CPU Fan connector 1 x 4-pin, 1 x Chassis Fan connector 1 x 4-pin, 1 x 24-pin EATX Power connector, 1 x 8-pin ATX 12V Power connector, 1 x Front panel audio connector AAFP |
- It supports NVIDIA and AMD series graphics cards
- The CPU features Integrated Graphics output VGA / DVI-I / HDMI
- Support non-ECC PC memory
- Ultra-fast PCIe M.2 NVMe slot design
- 24pin+8pin power interface
- ALC662 5.1-channel onboard sound-card
- PCB
- 4 x layers
- 5 x phase power supply
- Graphics
- Integrated graphics processor
- 1 x VGA port
- 1 x DVI-I port
- 1 x HDMI port
- Supports NVIDIA and AMD graphics cards
- Expansion slots
- 1 x PCIe 3.0 x 16
- 1 x PCIe 3.0 x 1
- Storage
- 4 x SATA 3.0 6GB / s port
- 1 x M.2 Socket 3, NVMe
- Ports
- 1 x PS / 2 keyboard and mouse port
- 1 x LAN RJ45 port
- 4 x USB 3.0
- 3 x Audio jack
- Packing list
- 1 x I / O shield
- 1 x SATA cable
- 1 x Manual
- 21.5 x 16.8cm Micro ATX form factor dimension
Description
Huananzhi B250 D4 M-ATX motherboard supports Intel LGA 1151 family processors with 6 / 7 / 8 / 9 generation processors. It has double DDR4 memory sockets that support 2666 / 2400 / 2133MHz memory support up to 32GB. The storage interfaces are 4 x SATA 3.0.
